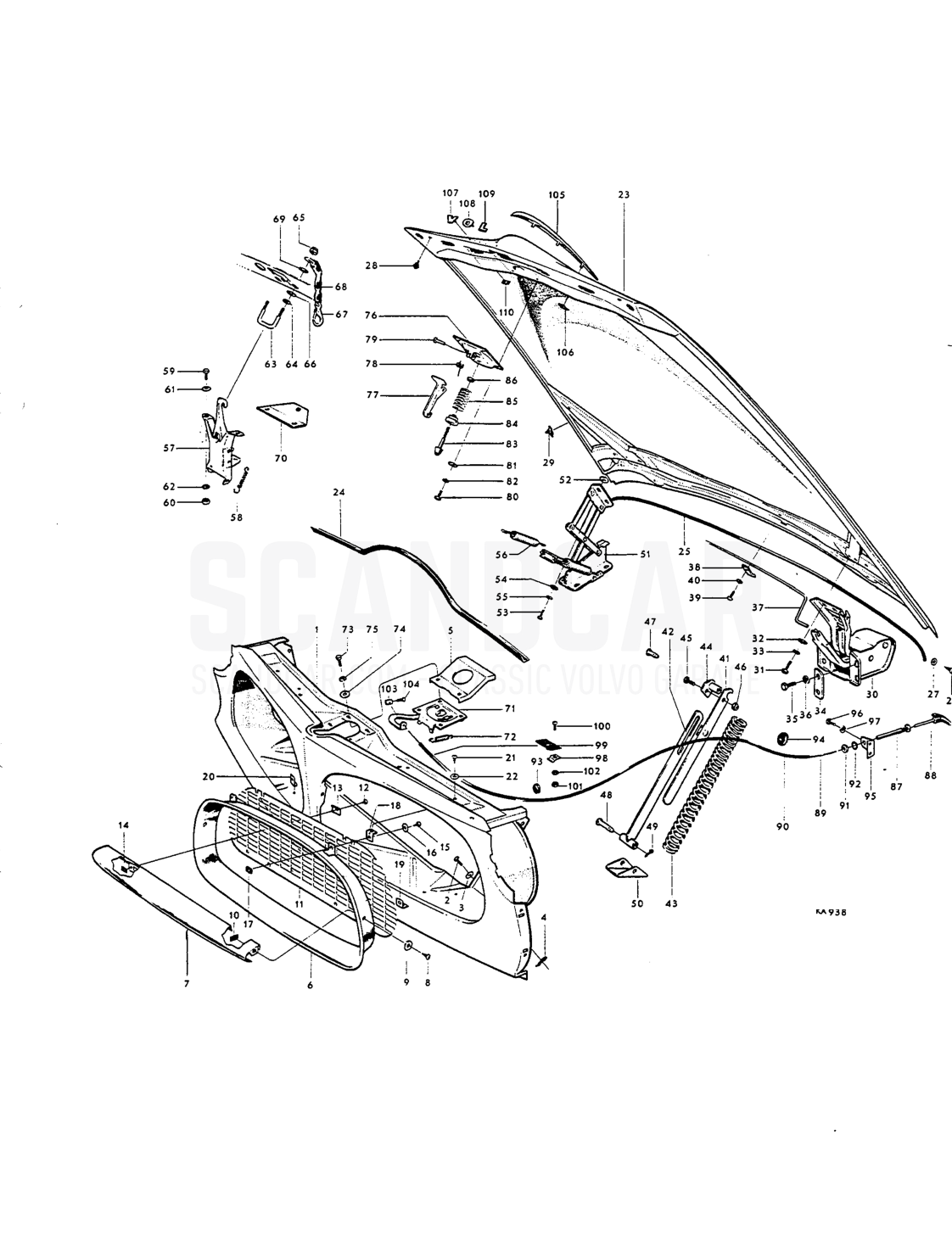

Front end, Hoocl, Hood lock - Kaross - Volvo Amazon B16
För muspekaren över för att zooma, klicka på bilden för helskärm
Front end, Hoocl, Hood lock
Volvo Amazon B16 · Kaross
| # | Del | Pris | Antal | |
|---|---|---|---|---|
| 47 |
Bearing bolt upper
657068
|
1× | ||
| 48 |
Bearing bolt lower
657069
|
1× | ||
| 49 |
Cotter pin
907843
|
2× | ||
| 50 |
Bracket
657071
|
1× | ||
| 51 |
Hinge
659394
|
1× | ||
|
Hinge
659395
|
1× | |||
| 52 |
Adjuster washer
951718
|
1× | ||
| 53 |
Screw
921840
|
12× | ||
| 54 |
WasheF
951718
|
12× | ||
| 55 |
Spring washer
906992
|
12× | ||
| 56 |
Spring
659816
|
4× | ||
| 57 |
Hood lock cpl
656095
|
1× | ||
| 58 |
Spring
656083
|
1× | ||
| 59 |
Screw
190075
|
4× | ||
| 60 |
Nut
151232
|
4× | ||
| 61 |
Washer
61947
|
4× | ||
| 62 |
Spring washer
17890
|
4× | ||
| 63 |
Lock brace
653322
|
1× | ||
| 64 |
Nut
190073
|
2× | ||
| 65 |
Nut
950392
|
2× | ||
| 66 |
Washer
120095
|
4× | ||
| 67 |
Lock chain cpl
659103
|
1× | ||
| 68 |
Plastic cover
190161
|
1× | ||
| 69 |
Washer
120095
|
2× | ||
| 70 |
Anchorage
659151
|
1× | ||
| 71 |
Hood lock cpl
657785
|
1× | ||
|
Hood lock cpl
657786
|
1× | |||
| 72 |
Spring
657793
|
1× | ||
| 73 |
Screw
190075
|
4× | ||
| 74 |
Washer
120095
|
4× | ||
| 75 |
Spring washer
17890
|
4× | ||
| 76 |
Motorkapslot Volvo Amazon, Bonnet lock, Hoot lock latch assembly, Original Volvo, Gebruikt, Used
657796
|
548,90 kr | 1× | |
| 77 |
Safety catch
657717
|
1× | ||
| 78 |
Spring
657798
|
1× | ||
| 79 |
Rivet
191085
|
1× | ||
|
10063-10072,J0075-10081 10084-10091,10093,10095-10118,10120-10192,10195-10328,10331
10333
|
1× |
